New Products . . . . .

CoolPoint Inline vortex flow meters from UNIVERSAL FLOW MONITORS (UFM)

COOLPOINT WATER VORTEX FLOW INDICATOR, SWITCH AND TRANSMITTER

These vortex shedding flowmeters are designed for coolant or water flow from ¼ to 4 inch pipe sizes. Optionally, ¾ to 4 inch sizes have temperature transmitters. In ¼ -2 inch sizes, 316 Stainless Steel bodies and Kalrez seals make it suitable for low viscosity corrosive fluids. They cost a lot less than mag meters and they are OK with high particulate. Simple, reliable and inexpensive.

* No moving parts to jam

* 4-20 mA ,switch, pulse standard

* cheaper than mags

* better than low end thermal

* Bright LED

* temperature transmitter optional

* 316 SS optional

* totalizing optional

NEW FROM EMCO . . . . .

EMCO UTM Transit Time Flow Meter . . . . .

PD305 & PD306: Head Mount Temp Transmitter Inside Connection Head with Probe

Description: Head Mount Temp Transmitter Inside Connection Head with Probe

Inputs: Thermocouple, RTD, Ohm & mV

Power: Loop-Powered (7.5 to 45 VDC, reverse polarity protected)

Display: None

Case: Explosion-Proof or General Purpose Head

Communications: HART® (Model PD306)

NEW Temperature Transmitters- from Precision Digital . . . . . .

AND . . . .Fluidwell F-Series Displays . . . . .

Indicators

Totalizers

Flow Controllers

Fuel Consumption Computers

Batch Controllers

Flow Computers

Flow Monitors

Features . . .

4-20 mA, 0-10 V, Pulse, RTD inputs

AC, DC, or battery powered

Rugged NEMA 4X enclosure

Intrinsically-safe or explosion-proof

Serial MODBus Communications

Back-lit displays

PD312: HART® Temperature Transmitter with Display & Probe

Description: HART® Temperature Transmitter with Display & Probe

Inputs: Thermocouple, RTD, Ohm & mV

Power: Loop-Powered (10.5 to 45 VDC, reverse polarity protected)

Display: Backlit LCD PV: 0.3" (8 mm) 5-digit LCD, Input & Units: 0.2" (5 mm)

Case: Explosion-Proof or General Purpose Housing

Communications: HART®

Introducing the UTM10 Ultrasonic Flowmeter

A Flow and Energy Meter for Liquid

EMCO-Spirax Sarco, Inc. proudly introduces a new ultrasonic clamp-on flow and energy meter -- the UTM10. This unit has the ability to measure liquids with small amounts of suspended solids or aeration in line sizes from ½” to 80 inches.

Full pipe liquid applications include cooling lines, liquid condensate, water distribution and processes where system shutdown is impossible.

The UTM10 is designed to clamp onto the outside of existing pipes without contacting fluids, reducing installation time and material costs. There is no need to shut down the process for installation or maintenance, therefore the UTM10 can be fully operational in minutes. With no moving parts, there is no mechanical wear; no repair kits or replacement parts are ever needed. Future maintenance costs are virtually non-existent.

The UTM10 features a rugged, compact aluminum enclosure, easy-to-read digital display, bi-directional flow measurement, and a totalized featuring forward, reverse and net total, and Modbus communications. An optional Ethernet connection is available as well as a programming port. USP, a Windows® based software utility allows users to easily configure, calibrate, and troubleshoot the UTM with any Windows® based PC.

This unit is available in two versions: a stand-alone flow meter and an energy flow meter used in conjunction with dual clamp-on RTDs. The energy flow meter measures energy usage in BTU or Tons and is excellent for chilled water and other HVAC applications.

GDS Corp. provides a wide range of industrial fixed gas detection systems including toxic, oxygen and combustibles. Application areas include Petrochemical, Oil and Gas, Pulp and Paper, Semiconductor, and other industries requiring affordable gas detection solutions in even the most difficult and challenging environments. GDS Corp. monitors and alarm controllers are truly "state of the art" devices offering unparalleled features and capabilities along with OSHA approved NRTL (Nationally Recognized Testing Laboratory) certifications.

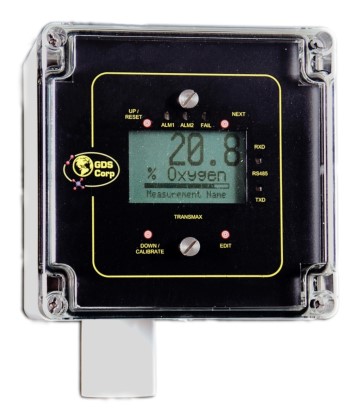

TransMaxII Toxic/ O2/ Combustible Monitor

Powered gas monitor with graphic display and alarm LEDs. Two channels allow simultaneous monitoring for toxic and combustible gases. Compatible with all GDS Corp sensors. Optional alarm relays and MODBUS. Nema 4X for non-hazardous areas.

* Monitor both Toxic / O2 and LEL / VOC from single point

* Graphic display shows values, units, trend graph

* Non-intrusive one-person prompted calibration

* Power-up and post-cal delay eliminates false alarms

* Backlit display for better visibility in low light

* Options for 3x 5A alarm contacts, isolated 4-20mA and MODBUS® interface

* Security settings to lock critical parameters

* For loop-powered toxic applications see TRANSMAX/E

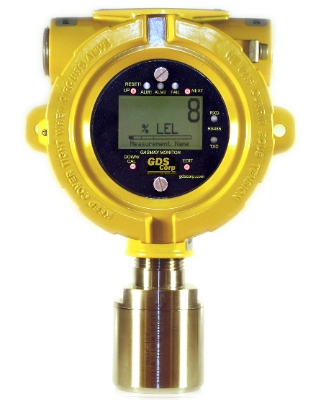

GasMaxII Toxic/ O2/ Combustible Monitor with smart sensor interface

Powered gas monitor with graphic display and alarm LEDs. Two channels simultaneously monitor toxic and combustible gases. Compatible with all GDS Corp sensors. Optional local alarm relays, MODBUS interface. Certified for use in hazardous areas

* CSA Certified for explosion proof installations

* ATEX Certified version available

* Monitor both Toxic / O2 and LEL / VOC from single point

* Graphic display shows values, units, trend graph

* Non-intrusive one-person prompted calibration

* Power-up and post-cal delay eliminates false alarms

* Backlit display for better visibility in low light

* Options for 3x 5A alarm contacts, isolated 4-20mA and MODBUS® interface

* Security settings to lock critical parameters

* Smart Sensors store calibration & alarm events

* For loop-powered toxic applications see GASMAX/EC

Multichannel Controllers Available . . .

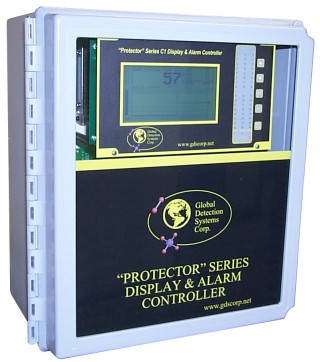

C1 PROTECTOR 8/16 CHANNEL DISPLAY & ALARM CONTROLLER WITH MODBUS MASTER-SLAVE RS-485 PORTS

Flexible modular design. Input analog, direct bridge, MODBUS or wireless. Relay, 4-20mA and MODBUS output. Multiple alarm setpoints per channel. Ethernet option. NRTL certified for Div. 2 hazardous areas and C22.2 No. 152 for LEL combustibles

* High resolution LCD with graphic display and channel-specific indicator LEDs for quick problem identification

* Alarm LEDs flash when new and become steady when acknowledged

* Channel-specific display with short term and 24 hour trend data

* Sensor life reading available when using remote GASMAX gas monitors

* Three independent alarm levels per channel that include setpoint, on/off delay, alarm above / below and voting options

* Built-in calibration mode offers pushbutton zero / span calibration for direct sensor interface applications

* Analog input, direct bridge-type input or MODBUS master input

* Standard outputs include four common relays (A1, A2, Fault, Horn) plus MODBUS slave interface

* Optional discrete channel-specific relays, 4-20mA outputs and printer interface

* Magnetic keypad available for nonintrusive operation in potentially hazardous locations

* CSA approved for Class I Div 2 areas without purge. CE mark

* NEMA 4X, Explosion-Proof, panel and rack mount packaging options available
